TBL 14
| Width (mm) | 78 |
| Height (mm) | 206 |
| Lenght (mm) | 9+2.3n |
| Horizontal port distance (mm) | 42 |
| Verical port distance (mm) | 172 |
| Max pressure (Mpa) | 3 |
|
Max flowerate (M3/h) |
3.6 |
|
Weight (kg) |
0.6+0.06n |
TBL 20
| Width (mm) | 76 |
| Height (mm) | 310 |
| Lenght (mm) | 9+2.3n |
| Horizontal port distance (mm) | 42 |
| Verical port distance (mm) | 282 |
| Max pressure (Mpa) | 3 |
| Max flowerate (M3/h) | 3.6 |
| Weigth (kg) | 1.0+0.08n |
TBL 26
| Width (mm) |
111 |
| Height (mm) |
310 |
| Lenght (mm) |
10+2.3n |
| Horizontal port distance (mm) |
50 |
| Verical port distance (mm) |
250 |
| Max pressure (Mpa) |
3/4.5 |
| Max flowerate (M3/h) |
8.1 |
| Weight (kg) |
1.3+0.12n |
TBL 26 C
| Width (mm) |
124 |
| Height (mm) |
304 |
| Lenght (mm) |
13+2.4n |
| Horizontal port distance (mm) |
70 |
| Verical port distance (mm) |
250 |
| Max pressure (Mpa) |
3 |
| Max flowerate (M3/h) |
8.1 |
| Weight (kg) |
2.2+0.16n |

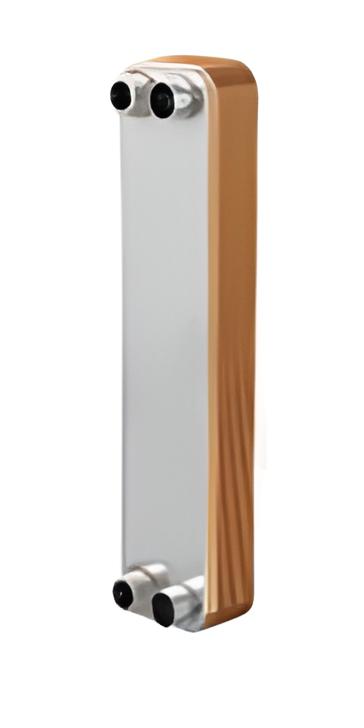

TBL 50
| Width (mm) | 111 |
| Height (mm) | 525 |
| Lenght (mm) | 10+2.35n |
| Horizontal port distance (mm) | 50 |
| Verical port distance (mm) | 466 |
| Max pressure (Mpa) | 3/4.5 |
| Max flowerate (M3/h) | 12.7 |
| Weight (kg) | 2.6+0.19n |

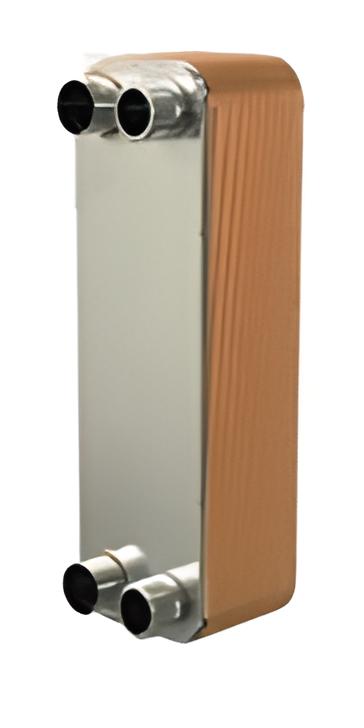

TBL 95
| Width (mm) | 191 |
| Height (mm) | 616 |
| Lenght (mm) | 11+2.35n |
| Horizontal port distance (mm) | 92 |
| Verical port distance (mm) | 519 |
| Max pressure (Mpa) | 3/4.5 |
| Max flowerate (M3/h) | 39 |
| Weight (kg) | 7.8+0.36n |

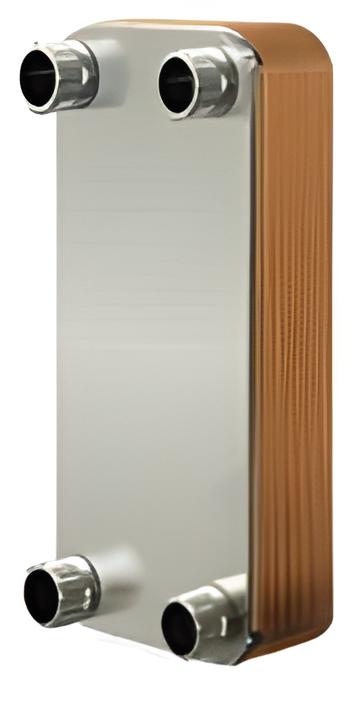

TBL 120
| Width (mm) |
246 |
| Height (mm) |
528 |
| Lenght (mm) |
13+2.36 |
| Horizontal port distance (mm) |
174 |
| Verical port distance (mm) |
456 |
| Max pressure (Mpa) |
3 |
| Max flowerate (M3/h) |
42 |
| Weight (kg) |
72+0.5n |

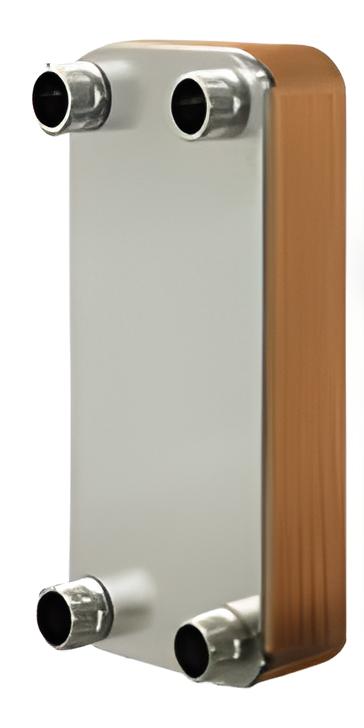

TBL 190
| Width (mm) |
307 |
| Height (mm) |
696 |
| Lenght (mm) |
13+2.75n |
| Horizontal port distance (mm) |
179 |
| Verical port distance (mm) |
567 |
| Max pressure (Mpa) |
3 |
| Max flowerate (M3/h) |
100 |
| Weight (kg) |
12.5+0.72n |

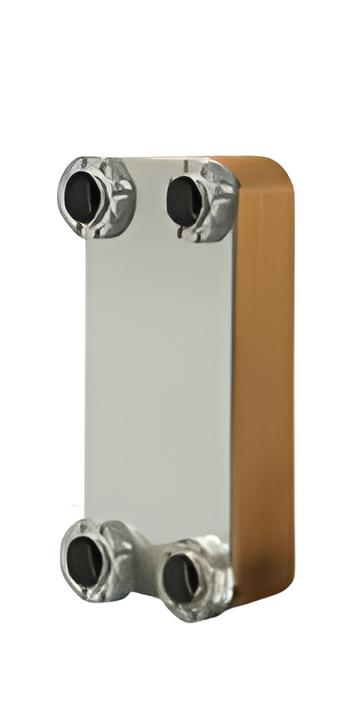

TBL 200
| Width (mm) | 321 |
| Height (mm) | 738 |
| Lenght (mm) | 13+2.7n |
| Horizontal port distance (mm) | 188 |
| Verical port distance (mm) | 603 |
| Max pressure (Mpa) | 2.1 |
| Max flowerate (M3/h) | 100 |
| Weight (kg) | 13.0+0.75n |

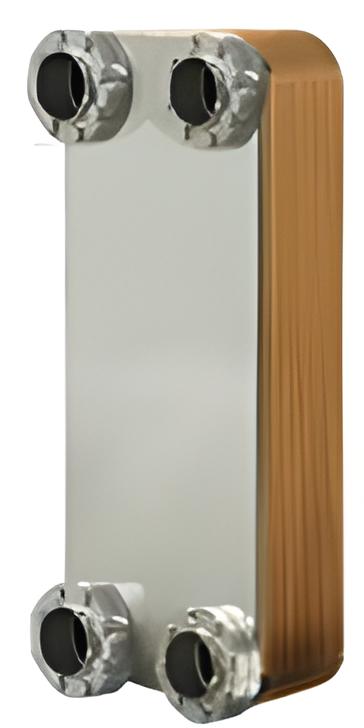

TBL 600
| Width (mm) |
429 |
| Height (mm) |
1398 |
| Lenght (mm) |
22+2.78n |
| Horizontal port distance (mm) |
220 |
| Verical port distance (mm) |
1190 |
| Max pressure (Mpa) |
1.5 |
| Max flowerate (M3/h) |
300 |
| Weight (kg) |
31.8+1.73n |

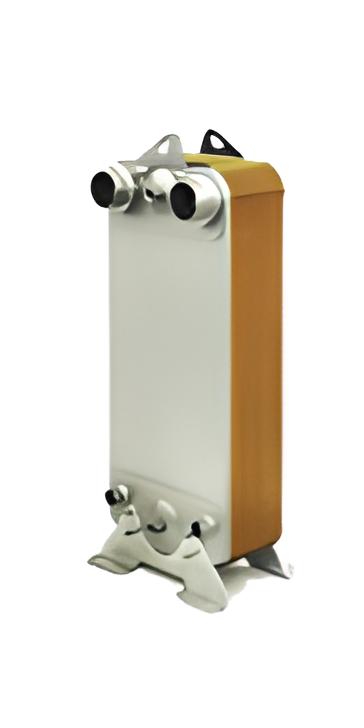

TBL 100*
| Width (mm) | 248 |
| Height (mm) | 495 |
| Lenght (mm) | 10+2.15n |
| Horizontal port distance (mm) | 157 |
| Verical port distance (mm) | 405 |
| Max pressure (Mpa) | 3/4.5 |
| Max flowerate (M3/h) | 42 |
| Weight (kg) | 6.5+0.37n |

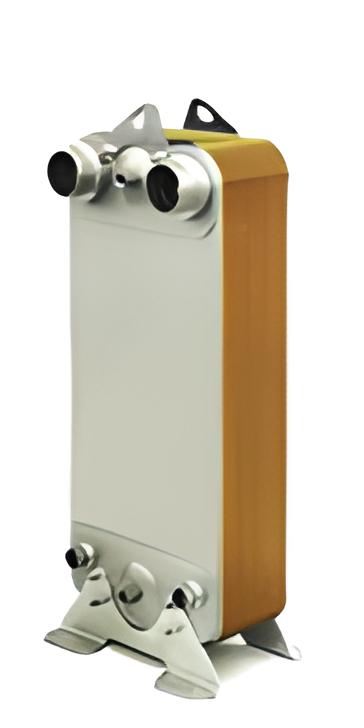

TBL 210*
| Width (mm) |
322 |
| Height (mm) |
739 |
| Lenght (mm) |
13+2.55n |
| Horizontal port distance (mm) |
2052 |
| Verical port distance (mm) |
631 |
| Max pressure (Mpa) |
3/4.5 |
| Max flowerate (M3/h) |
100 |
| Weight (kg) |
13+.078n |
